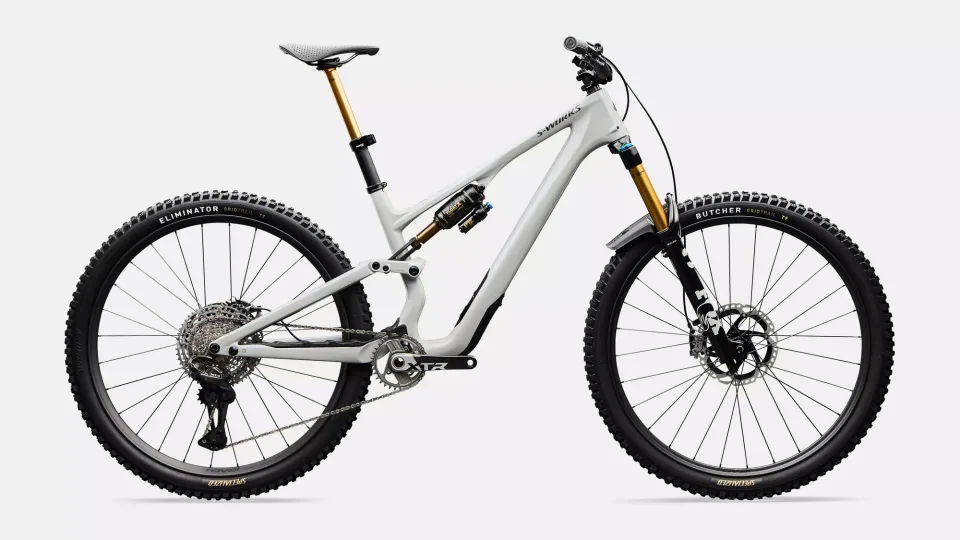

S-Works Stumpjumper 15 EVO - Shimano XTR Di2, FOX Factory

Kompletní specifikace

Modelový rok

2026

Rám

FACT 11m carbon chassis, rear-end and link, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel

Řazení

Shimano XTR Di2, 12-speed

Kolová sada

Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 15x110mm, 28h, DT Swiss Revolite Spokes, 6 bolt

Velikosti rámu

S1, S2, S3, S4, S5, S6

Hmotnost

13.95 kg

Barva

Gloss Solidity Metallic

Sedlová Objímka

Alloy, 38.6mm

S W A T

SWAT 4.0 internal downtube storage

Zadní Tlumič

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm

Vidlice

FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm Kabolt axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel

Přední Brzda

Shimano XTR, 4-piston caliper, Hydraulic disc

Zadní Brzda

Shimano XTR, 4-piston caliper, Hydraulic disc

Páčky Řazení

Shimano XTR Di2

Přehazovačka

Shimano XTR Di2 RD-M9250, 12-speed

Kazeta

Shimano XTR CS-M9200, 12-speed, 10-51t

Řetěz

Shimano XTR, 12-speed w/ quick link

Kliky

Shimano XTR, 55mm chainline, 32T, S1-S3: 165mm, S4-S6: 170mm

Středové Složení

Shimano BB93

Přední Plášť

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR, 29X2.4

Přední Kolo

Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 15x110mm, 28h, DT Swiss Revolite Spokes, 6 bolt

Zadní Plášť

Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"

Zadní Kolo

Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, Industry 9 Hydra Hub, 15x110mm, 28h, DT Swiss Revolite Spokes

Duše

Standard, Presta Valve

Představec

Race Face Turbine R, 35mm clamp, 40mm length

Řídítka

RaceFace ERA Carbon, 5-degree upsweep, 8-degree backsweep. S1-S2: 800 width, 20mm rise: S3-S6: 800 width, 55mm rise

Gripy

Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

Sedlo

Specialized S-Works Power Mirror, Ti Rails, S1-S2: 155mm, S3-S6:143mm

Seatpost

FOX Transfer NEO Factory, 34.9, S1:125mm, S2: 150mm, S3: 175mm, S4-S6: 200mm

Id Produktu

291508

Weight

13.95 kg

Weight Size

S4

Velikost kol

29",29"/27.5"
